Beschreibung

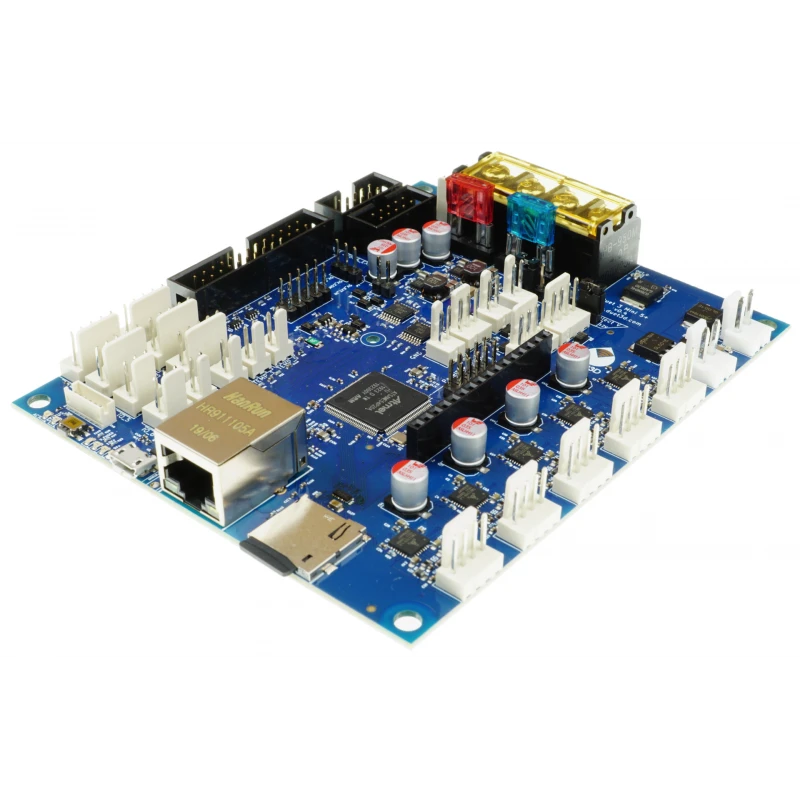

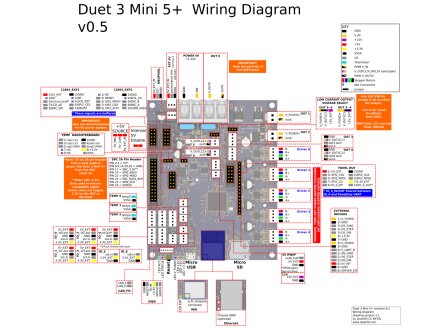

Duet 3 Mini 5+ Ethernet/ Wifi Controller Board für 3D-Drucker eignet sich für kleine und mittlere Maschinen, die nicht die hohe Leistung des Duet 3 Mainboard 6HC benötigen.
Es besitzt fünf integrierte Treiber (TMC2209) und die üblichen Schnittstellen für Lüfter, Heizelemente, IO´s, LCD, etc.
Das Board bietet die Option einen Single Board Computer (SBC) zur Steuerung zu verwenden
| HARDWARE SPECIFICATION | ||
|---|---|---|
| Duet 3 Mini 5+ WiFi | Duet 3 Mini 5+ Ethernet | |
| Processor | ATSAME54P20A | |
| Processor features | 120MHz ARM Cortex M4F, 1Mb flash, 256Kb RAM, hardware floating point (single precision), DMA, 4Kb cache | |
| Networking/Comms | 2.4GHz WiFi; USB port; serial port | 10BaseT/100BaseTX Ethernet; USB port; serial port. |
| On-board stepper drivers | 5 x TMC2209 | |
| Stepper driver features | Up to 2.0A peak current (TBC), microstep interpolation from any setting to x256, stall detection, stealthChop2 | |
| Heater outputs | Bed heater (up to 18A TBC), 2 x extruder heater (up to 5A each) | |
| Thermistor/PT1000 inputs | 3, optimised for 100K thermistors and PT1000 sensors | |
| Fan outputs | 4 controlled fans of which 2 support 4-wire fans with PWM and tacho wires, voltage selectable between VIN and 12V in 2 banks | |
| Inputs/Outputs | 5 on-board I/O connectors plus 2 input-only connectors for endstop, filament monitor, Z probe, servo or PanelDue connection. Inputs are 30V-tolerant. Further expansion via CAN-connected expansion boards. | |
| Endstop or filament monitor inputs | See under Inputs/Outputs | |
| Z probe connector | See under Inputs/Outputs | |
| Power monitoring | VIN voltage monitoring allows for state save on power failure. | |
| SD card interface | On-board high speed (22.5Mbytes/sec) SD card socket. | |
| EXPANSION | ||
| Support for attached Raspberry Pi or other Single Board Computer (SBC) | Yes | |
| External stepper driver support | 2 external stepper drivers from stepper driver expansion connector. Multiple expansion via the CAN bus including 1XD external driver boards. | |
| Stepper driver expansion | 2 additional TMC2209 stepper drivers using a mini 2+, further expansion via CAN | |
| Heater/thermistor expansion | Expansion via CAN using 3HC or toolboard 1XD. | |
| PT100 and thermocouple daughter board support | 1 board (2 channels) | |
| Servo support | See under Inputs/Outputs. Also one output with 5V signal level for servo, laser or VFD converter (shared control signal with one of the 2-wire fan outputs). | |
| LCD support | PanelDue colour touch screen, mini 12864 mono graphics display using ST7567 controller (3.3V signal levels) | |
| LED strip support | RGB Neopixel (max. 60 LEDs, external 5V power required) | |
| Other expansion | Via I/O ports and CAN bus | |
Wählen Sie zwischen der Ethernet oder Wifi Variante aus
Weitere Informationen zur Ausstattung des Boards finden Sie hier:
https://duet3d.dozuki.com/Wiki/Duet_3_Mini_5plus_Hardware_overview
Weitere Informationen
| Gewicht | 0,400 kg |
|---|---|
| Prozessor | 32-bit ARM-Prozessor |
| Schrittmotortreiber | 5x TMC 2209 |
| Schnittstellen | externe Wifi-Antenne, Ethernet |
| Erweiterungen | via CAN Bus z.B. Expansion 3HC, ToolBoards usw. |
| Schnittstelle | Wifi-EA, Ethernet |
